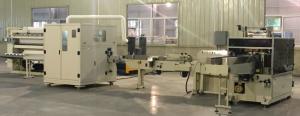

Plastic Film Packing Facial Tissue Production Line Semi Automatic High Speed

Product Categories

Foshan Origin Machinery Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Plastic Film Packing Facial Tissue Production Line Semi Automatic High Speed
Brand: ORGINAL
Price: 1 USD

Brand Name : ORGINAL

Model Number : FTM6-10T

Place of Origin : CHINA

MOQ : 1set

Price : Negotiable

Supply Ability : 4sets per month

Delivery Time : 45 days

Packaging Details : wooden pallet,1*40 feet container can load 1set

air pressure : 0.8Mpa

automatic type : semi automatic

packing : platic film packing

machine type : vacuum type

backstand : 2/4/6 sets

place of origin : China(Mainland)

Contact Now

FTM4T-10 Facial Tissue Folding Machine

Features:

MODEL	FTM4T	FTM5T	FTM6T	FTM7T	FTM8T	FTM9T	FTM10T
Max. Width of jumbo roll	900mm	1050mm	1300mm	1450mm	1750mm	1950mm	2050mm
Slitting knife	4sets in back and front	5sets in back and front	6sets in back and front	7sets in back and front	8sets in back and front	9sets in back and front	10sets in back and front
Vacuum pump	11kw	15kw	18.5kw	18.5kw	22kw	22kw	22kw
Main driving motor powe	4kw	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	11kw
Machine size(m)	6×2.1×1.9	6×2.3×1.9	6×2.5×1.9	6×2.6×1.9	6×3×1.9	6×3.1×1.9	6×3.2×1.9
Machine weight	4500kg	5500kg	6500kg	7500kg	8000kg	8300kg	8500kg
Machine speed	500-1000 sheet/min/lane
Max.diameter of jumbo roll	Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll	Ф76.2mm(other sizes can be ordered)
Air pressure	0.8Mpa(user supplied)

YD-ZN150S High Speed Facial Tissue Log Saw Cutting Machine

Features:

Delta servo motor feeding driving,control precisely.
Delta PLC control programme makes control steadily.
610mm diameter good quality log saw blade extend the using time
Air TAC cylinder and valves from TAIWAN make the pneumatic system work smoothly.

MODEL	YD-ZN150S
Cutting speed	30-120cuts/min
Cutting length	85-210mm
Cutting height	40-120mm
Cutting width	85-120mm
Power	8.6kw,380v,50Hz
Main driving motor power	4kw,380v,50Hz
Cutting circular blade driving motor	2.2kw,380v,50Hz
Tissue log feeding motor(servo motor)	3kw,380v,50Hz
Air pressure	0.6Mpa(user supply)
Machine size	2.2×1.22×2.05m

RC300B Full Automatic Plastic Film Facial Tissue Packing Machine

Features:

Model	RC300B
Packing speed	30-80bag/min
Speed control	MITSUBISHI frequency converter
After packing size	L=(120-200)×W=(80-110)×H=(50-90)mm (3 sizes can be option)
Control system	SIEMENS PLC control system
Parameter setting	WEINVIEW touch screen
Total power	6.8kw,380v,50Hz
Air pressure	0.8Mpa
Machine size	3.65×6×1.85m
Machine weight	2300kg
Packing film material	CPP,PE,OPP

Product Tags:

facial tissue making machine
